The Tata Winger School Van – Ensuring children’s safety and comfort! A new offering from Tata Motors, packed with safety and comfort features that ensure total peace of mind.
A comfortable ride for the little ones!
Wing School Van – A World of advantages….

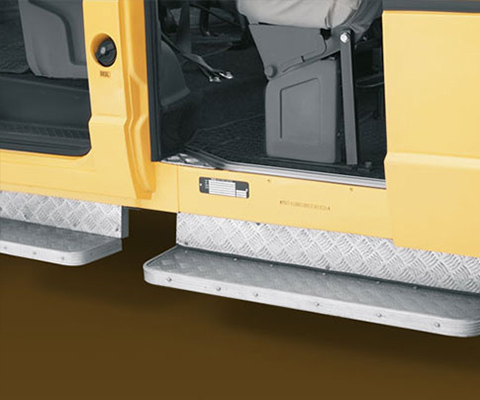

Side foot step:
Provided at left hand side of vehicle for convenient entry and exit of passengers.

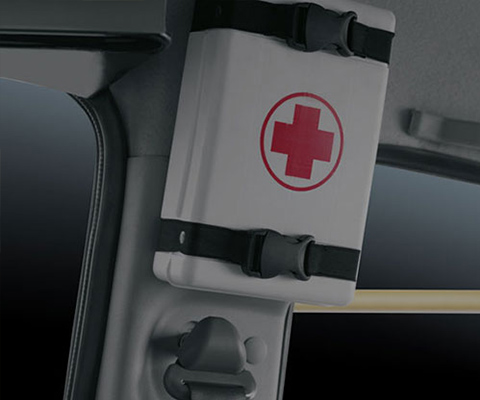

First-aid kit:
50 Hz 800 VA inverter; integrated AC/DC supply in vehicle synchronised with:
Space for keeping first-aid kits is provided on dashboard. It contains items that can be used in case of minor injuries only.

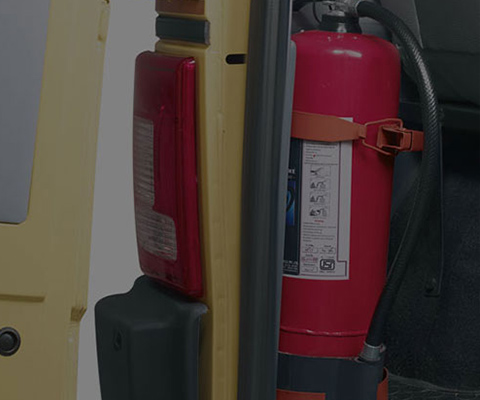

Fire extinguishers:
Two fire extinguishers are provided, one on the left side of driver’s seat on the floor, the other on the left hand side wall near passenger door.

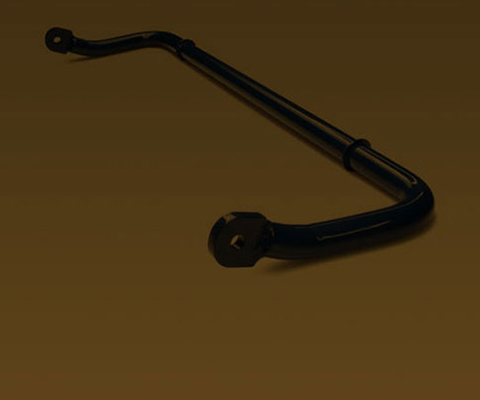

Anti-roll bar: For roll-over protection..
| Number of Seats | 13+D |
| SEAT TYPE | Soft Cushion Standard |
| Emission | BS-4 |
| TYPE | 1948 cc, 4 DL TCIC |
| POWER | 68 KW (90 HP) @ 4300 rpm |
| TORQUE | 190 Nm @ 2000~3000 rpm |
| CLUTCH | SINGLE PLATE DIAPHRAGM - 215 MM |
| GEAR BOX | 5 fwd+1 reverse, Manual |
| AXLE FRONT: | Independent with CV Shaft; REAR: Bogey |
| STEERING | Power Assisted Rack & Pinion |
| BRAKES FRONT: | Disc Brakes with Twin Pot Calliper; REAR: Drum Brakes with LSPV |
| SUSPENSION FRONT: | Mcpherson Struts with Coil Spring; REAR: Double Parabolic Leaf Spring |
| TYRES | 185 R14 LT, 8PR Radial |
| FUEL TANK | 60 l |
| BATTERY | 12 V 75 AH |
| WHEEL BASE | 2800 mm |
| LENGTH | 4520 mm |
| WIDTH | 1905 mm |
| HEIGHT | 2050 mm |
| INTERNAL LENGTH | 2335 mm |
| INTERNAL WIDTH | 1650 mm |
| INTERNAL HEIGHT | 1517 mm |
| GROUND CLEARANCE | 165 mm |
| TURNING RADIUS | 5.65m |
| KERB WEIGHT | 1620 kg |
| GVW | 2670 kg |
| AIR CONDITIONING | NO |
| CHILD SAFETY LOCK | ON SLIDING DOORS |
| SIDE IMPACT BEAMS | ON BOTH SIDES |
| RUB RAILS | ON BOTH SIDES |
| DOOR AJAR WARNING LAMP | FOR DRIVER AND CO-DRIVER |
